CUSTOMIZED SAFE BRAKE RESISTORS

Active energy management devices and safe brake resistors for Siemens SINAMICS products

As a Siemens product partner for drives options, KOCH offers tailor-made solutions for the Siemens product range – from standard products through to ready-to-connect systems in an installation. The close collaboration, qualification, certification, and intensive transfer of knowledge during every project phase give rise to solutions that fulfil the many different application requirements.

KOCH provides suitable solutions for all energetic situations of an electrical drive system, for which the optimal dimensions are determined together with you. We strive to deliver maintenance-free plug & play systems that can be connected directly on site.

  • In the following areas, KOCH is the right contact for you, offering expertise and extensive application experience:
  • Managing regen energy: In the event of excessive energy in the drive, KOCH products secure the functionality of the system or increase its energy efficiency.
  • Securing the power supply: In the event of too little energy in the drive due to grid disturbances or interruptions, KOCH solutions minimise the downtime and restart costs. During planned grid interruptions, they provide an off-grid energy supply.
  • Balancing energy: In case of frequent and intense changes in speed and direction, KOCH systems calm the energy balance of the drive and thereby ensure that the drive electronics experience far less strain. This helps avoid unplanned standstills or downtime.
  • Reducing heat development: Replacing the brake resistors with active energy management systems reduces losses and minimises air-conditioning requirements.
  • Using energy reserves: The KOCH systems can increase the performance or cycle rate of the drive by utilising energy reserves and by means of a higher starting voltage level for acceleration.
  • Reducing peak loads: The KOCH systems minimise infrastructure costs and negative circuit feedback by using additional power and energy reserves.

Products

Sinamics G220 IP55/IP20

SINAMICS G220 IP55/IP20 – Brake resistors with high protection class

Rated power
Allocation – Brake resistors for SINAMICS G220 IP55/IP20

Resistance
Allocation – Brake resistors for SINAMICS G220 IP55/IP20
REQUEST INFO

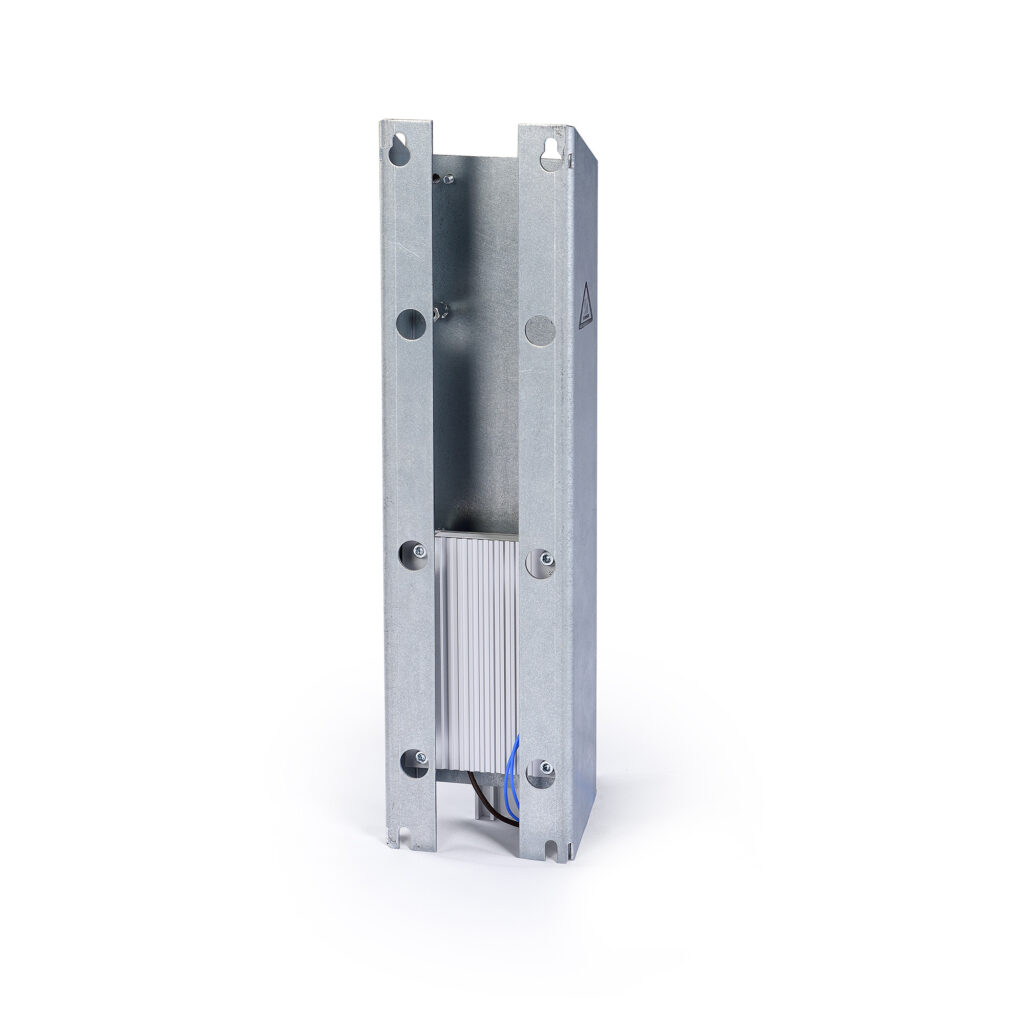

Sinamics G220 - passende Bremswiderstände im Unterbaurahmen

SINAMICS G220 – Brake resistors in a subframe

Rated voltage
Allocation Braking resistors to G220

Resistance
Allocation Braking resistors to G220
REQUEST INFO

SINAMICS S200 – Brake resistors

Rated power
ALLOCATION – BRAKE RESISTORS FOR SINAMICS S200

Resistance
ALLOCATION – BRAKE RESISTORS FOR SINAMICS S200
REQUEST INFO

SINAMICS S210 – Brake resistors

Rated power
Allocation – Brake resistors for SINAMICS S210

Resistance
Allocation – Brake resistors for SINAMICS S210
REQUEST INFO

SINAMICS G110D – Brake Resistors

Rated power
Allocation – Braking resistors to G110D

Resistance
80 | 160 | 390 Ohm
REQUEST INFO

SINAMICS G110M – Brake resistors

Rated power
240 watt (600 with duty cycle ED = 35%, ϑA = 20°C)

Resistance
80 | 200 Ohm
REQUEST INFO

SINAMICS G120C / PM240-2 – Brake resistors with lateral attachment

Rated power
Allocation Braking resistors to G120C/PM240-2

Resistance
Allocation Braking resistors to G120C/PM240-2
REQUEST INFO

SINAMICS G120C / PM240-2 – Braking resistors in a subframe

Rated power
Allocation Braking resistors to G120C/PM240-2

Resistance
Allocation Braking resistors to G120C/PM240-2
REQUEST INFO

SINAMICS V90 – Brake resistors

Rated power
Allocation – Brake resistors for SINAMICS V90

Resistance
Allocation – Brake resistors for SINAMICS V90
REQUEST INFO

Additionally, KOCH delivers specially developed, tested, and approved safe brake resistors for various Siemens frequency converter series. These can be found from page 7 onwards. KOCH can draft offers for and implement adaptations to specific machine or installation requirements, even at short notice.

Of course, KOCH also offers sizing support.

Your competent contact for all active energy management devices and safe brake resistors is:

Jens Knaus

Call us or send us an email. We will get back to you promptly.

Phone: +49 7251 96 26-238
j.knaus@bremsenergie.de
